Gateron Magnetic Jade Air HE
-
Regular Price
-
¥1,800
-
Sale Price
-
¥1,800
-
Regular Price
-
Sold Out
-
Unit Plice
- /
- Regular Price
- ¥1,800
- Sale Price
- ¥1,800
- Regular Price
- Unit Plice
- /

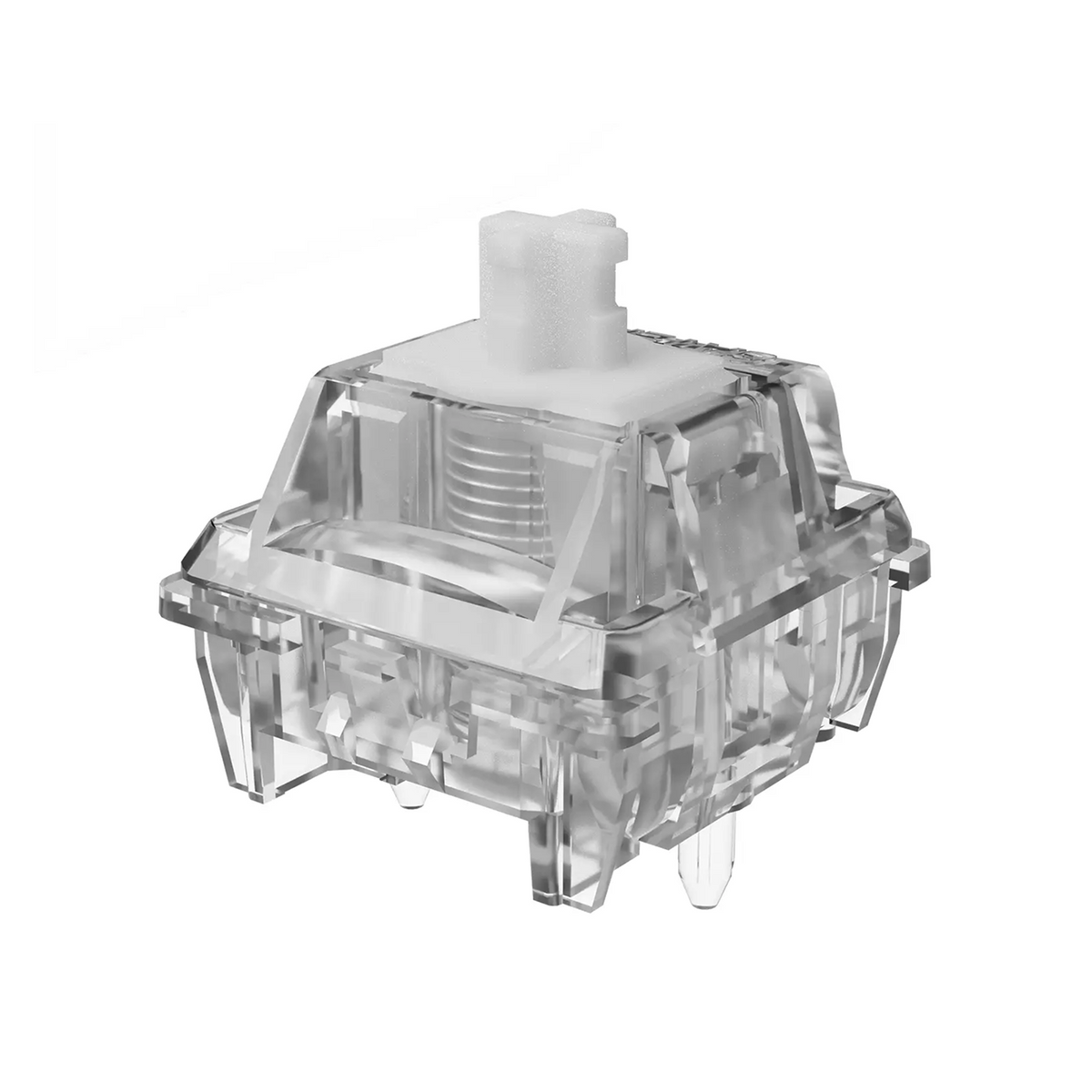

Gateron Magnetic Jade Air HE is a high-end KS-20 compatible magnetic (HE) switch boasting stunning RGB illumination through a fully transparent housing and ultra-high durability of over 150 million keystrokes.
Note: This product is not compatible with standard mechanical keyboards. It is designed exclusively for magnetic keyboards (Hall Effect compatible PCBs) such as Wooting 60HE/80HE, Apex Pro, etc.
150°C Heat-Resistant Premium Magnet Maintains Long-Term Rapid Trigger Precision
Featuring a highly heat-resistant neodymium magnet inside the stem that withstands harsh environments up to 150°C, the magnetic force remains completely unchanged even in heat-trapping device environments. It maintains an ultra-high durability of over 150 million keystrokes and consistently uniform performance. Furthermore, the dual-rail structure guides stem stability, enabling ultra-precise stopping without misactuations—even during intense tap shooting and strafing with 0.1mm Rapid Trigger settings in FPS movement control.

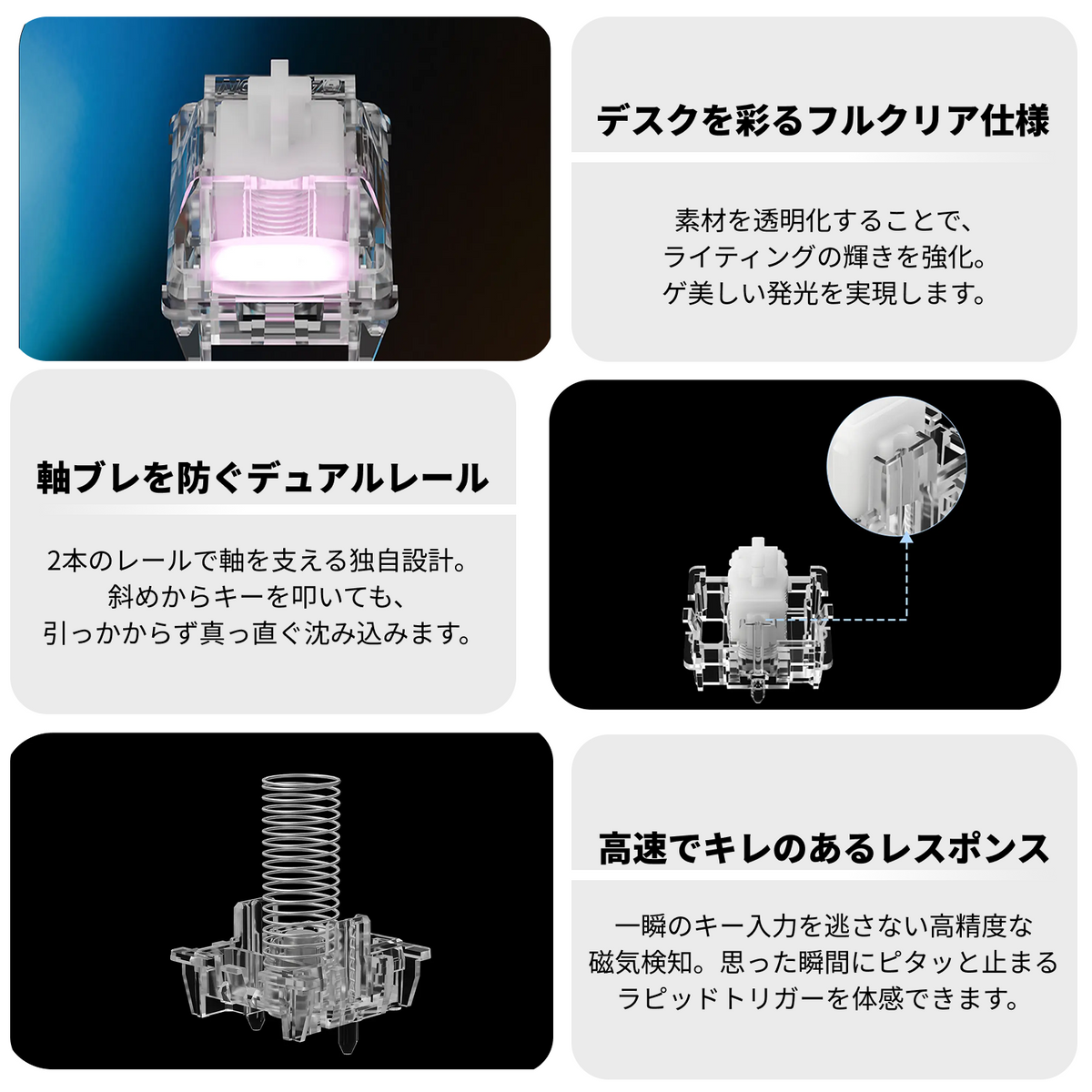

Fully Transparent Housing That Brightens Your Desk and Pure Hi-Fi Typing Sound
Utilizing ultra-high transparency materials throughout the entire housing paired with a clean white stem, its clear look diffuses keyboard RGB lighting in the most vibrant way possible. Additionally, the back-cover design seals the bottom to cut out unwanted hollow echo. While preventing lubricant leakage onto the PCB, it produces a tight, crispy, premium Hi-Fi sound that captivates audio-focused FPS gamers.
✅ Fully transparent housing that transmits RGB lighting with ultimate clarity and vibrancy
✅ 150°C heat-resistant magnet and dual-rail structure stably control ultra-fast 0.1mm Rapid Trigger settings
✅ Back-cover structure prevents lube leakage onto the PCB and eliminates unwanted noise for a pure typing sound
✅ Custom 20mm long spring provides a light typing feel and a snappy, high-speed rebound that clings to your fingers

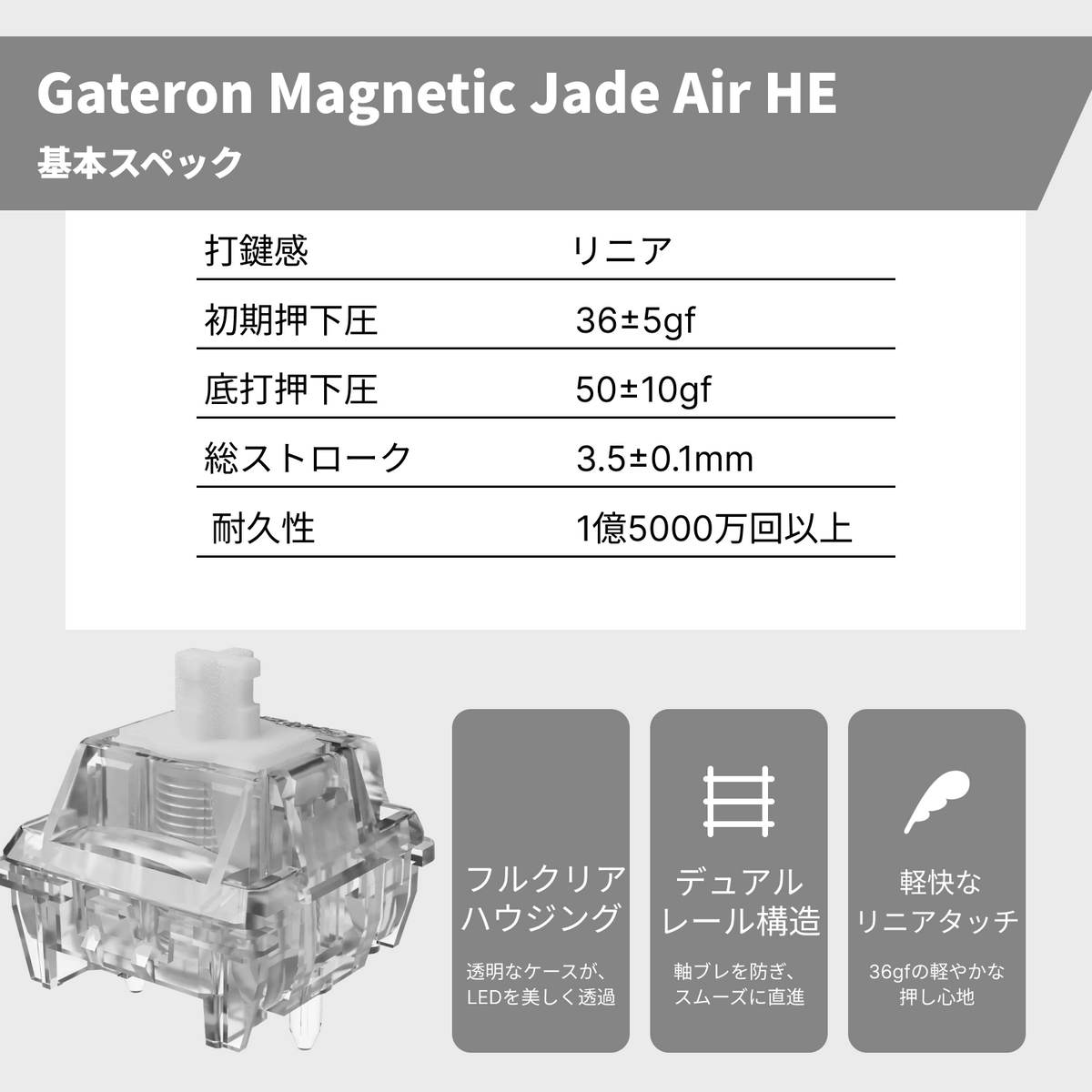

Specifications
Type: Linear
Compatibility: KS-20 Compatible (compatible with Wooting 60HE+, 80HE, Keychron HE series, Arbiter Studio Venom 60HE, etc.)
Initial Force: 36±5gf
Bottom-out Force: 50±10gf
Total Travel: 3.5±0.1mm
Actuation Travel (AP): Adjustable via keyboard software (supports Rapid Trigger settings from 0.1mm)
Spring: 20mm Custom Spring
Factory Lube: Yes
Lifespan: Over 150 million keystrokes
Compare nine standard-profile magnetic switches
Scroll horizontally to compare
| Specification |
Jade Air
Viewing now
|
Jade Pro
|
Jade Ultra
|
Jade Attraction
|
Jade Silent
|
Jade Dragon
|
Jade Delta
|
Genty Silent
|
Black Lotus
|
|---|---|---|---|---|---|---|---|---|---|
| Sound profile | Mid-high | High-pitched (Hi-Fi) | High-pitched (Hi-Fi) | Mid-pitched | Silent | Low-pitched (Hi-Fi) | Mid-low | Silent | Mid-pitched |
| Operating force |
Initial 36±5 gf
Bottom-out 50±10 gf |
Initial 36±5 gf
Bottom-out 50±10 gf |
Initial 30±5 gf
Bottom-out 40±10 gf |
Initial 30±3 gf
Bottom-out 30±3 gf |
Initial 33±5 gf
Bottom-out 45±10 gf |
Initial 33±5 gf
Bottom-out 45±10 gf |
Dark 38±5 gf Light 33±5 gf |
Initial 35±5 gf |
Initial 35 gf
Bottom-out 45 gf |
| Total travel | 3.5±0.1 mm | 3.5±0.1 mm | 3.2±0.1 mm | 3.2±0.2 mm | 3.2±0.2 mm | 3.2±0.1 mm | 3.5±0.1 mm | 3.7±0.2 mm | 4.0 mm |
| Stem stability | ★★★★★ | ★★★★☆ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★☆☆ | ★★★★★ |
| Product page | Viewing now | View product | View product | View product | View product | View product | View product | View product | View product |
Stem stability is rated on moimate’s five-point comparison scale.
Choose again by purpose →
